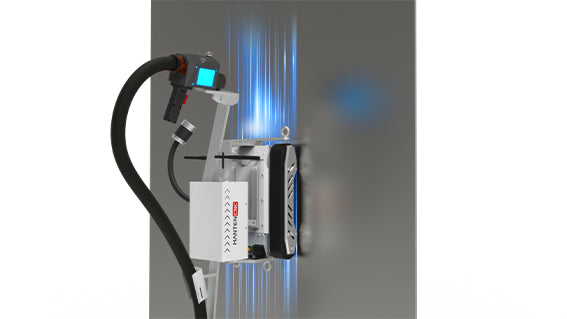

Magnetic wall climbing robot integrated with a pulsed laser cleaning machine, designed for vertical steel surfaces, rust removal, paint stripping, and industrial laser cleaning applications.
Magnetic wall climbing robot integrated with a pulsed laser cleaning machine, designed for vertical steel surfaces, rust removal, paint stripping, and industrial laser cleaning applications.

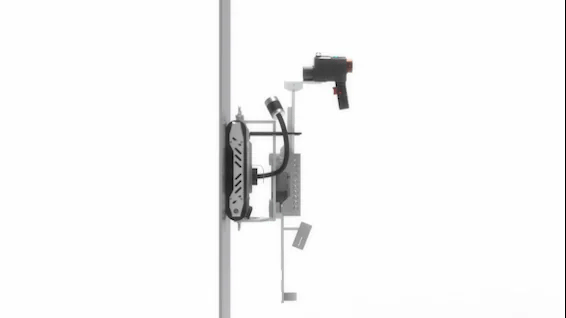

Side view of a magnetic wall climbing laser cleaning robot showing compact crawler structure and stable magnetic adhesion for pulsed laser cleaning on steel walls.
Side view of a magnetic wall climbing laser cleaning robot showing compact crawler structure and stable magnetic adhesion for pulsed laser cleaning on steel walls.
Magnetic climbing robot connected to a pulsed laser cleaner, suitable for rust removal, oxide cleaning, and surface preparation on steel structures and metal tanks.
Magnetic climbing robot connected to a pulsed laser cleaner, suitable for rust removal, oxide cleaning, and surface preparation on steel structures and metal tanks.
Complete magnetic wall climbing robot system compatible with 500W and 1000W pulsed laser cleaning machines for industrial vertical surface cleaning tasks.
Complete magnetic wall climbing robot system compatible with 500W and 1000W pulsed laser cleaning machines for industrial vertical surface cleaning tasks.
Magnetic wall climbing robot compatible with pulsed laser cleaner 500W 1000W
Magnetic wall climbing robot compatible with pulsed laser cleaner 500W 1000W

packaging of goods

Each unit is packed in a wooden crate with an approximate size of 1250 × 520 × 900 mm, designed to accommodate the magnetic wall climbing robot and related components. The crate structure is reinforced to ensure stability and protection during transportation and handling.
Gross weight: approx. 230 kg.

shipping costs

Shipping costs are calculated based on the customer’s location and order details. We work with reliable international carriers to ensure safe and timely delivery. Exact freight charges will be shown at checkout or confirmed by our sales team after order placement.

after-sales support

Our technical support team provides fast and professional service to ensure your laser cleaning equipment runs smoothly. Experienced engineers are available to assist with setup, operation, and troubleshooting. We respond promptly to inquiries and offer reliable after-sales solutions worldwide.

Magnetic Wall Climbing Robot for Pulsed Laser Cleaning (500W / 1000W)

$48,000.00

This magnetic wall climbing robot is designed as a dedicated mobile platform for pulsed laser cleaning machines, supporting both 500W and 1000W pulsed laser systems. It enables stable laser cleaning operations on vertical, inclined, and curved ferromagnetic surfaces, where manual cleaning is inefficient or unsafe.

The robot uses permanent magnetic adhesion, allowing it to securely attach to steel structures without relying on vacuum suction or smooth surfaces. This makes it suitable for rusted, painted, or uneven metal walls commonly found in industrial environments. The compact crawler structure ensures controlled movement while maintaining a consistent working distance for the pulsed laser cleaning head.

This magnetic wall climbing laser cleaning robot is commonly used for rust removal, paint stripping, oxide cleaning, welding residue removal, and surface preparation on steel structures. Typical applications include tanks, pressure vessels, shipbuilding, bridges, and industrial plants.

The system is compatible with handheld pulsed laser cleaners, allowing flexible switching between robotic climbing operation and manual laser cleaning, depending on site conditions and working height.
POWER
Quantity

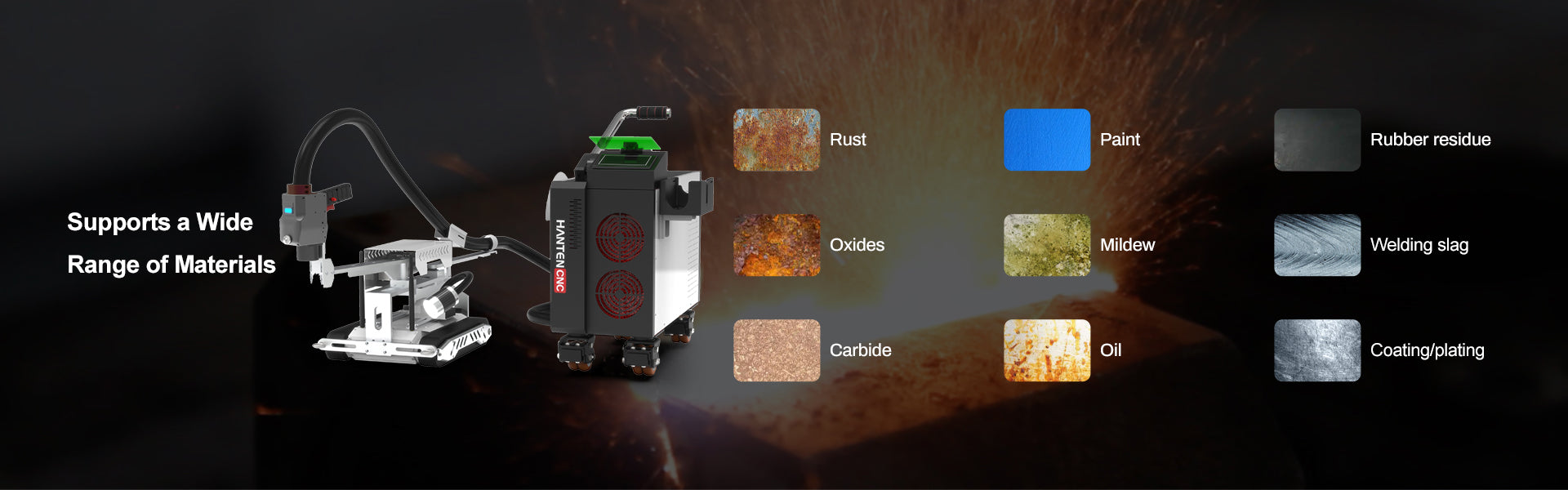

multi-material laser cleaning capabilities for industrial applications

Magnetic Adhesion for Vertical Laser Cleaning

The magnetic wall climbing robot uses permanent magnetic adhesion to maintain stable attachment on steel surfaces during laser cleaning. This ensures reliable operation on vertical walls while supporting pulsed laser cleaning systems for industrial surface treatment.

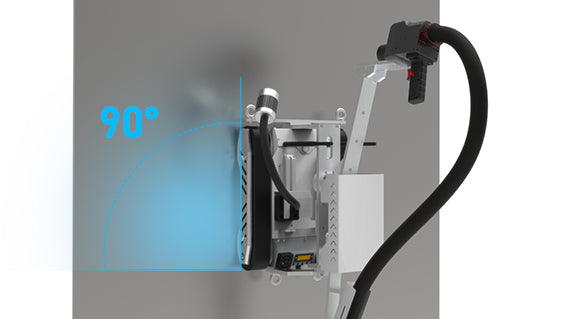

stable operation on 90° steel surfaces

Designed for extreme working angles, the system supports laser cleaning on 90° vertical steel surfaces. The compact crawler structure maintains balance and consistent working distance, even during continuous pulsed laser operation.

vertical laser cleaning for industrial steel structures

Combined with 500W and 1000W pulsed laser cleaning machines, the magnetic wall climbing robot delivers stable vertical operation while achieving high cleaning efficiency. With a single oscillation cleaning area of approximately 0.045 m² and a maximum oscillation frequency of 12 cycles per minute, the system provides a theoretical cleaning capacity of up to 32.4 m² per hour, making it suitable for rust removal, paint stripping, and surface preparation on steel walls, tanks, and structural components where manual access is limited.

Get Quote

key features & advantages

  • Product Infomation
Title

  • core specifications

  • performance & operation

  • electrical & dimensions

core specifications

Product Model

HTCM1000
Title

laser Souce

JPT
Title

Average laser Power

1000W
Title

Output Mode

Pulse
Title

Fiber Cable Length

10 meters (customizable)
Title

performance & operation

Pulse Repetition Rate Range

1-4000KHZ
Title

scanning width

Max 300mm*300mm
Title

laser wavelength

1064nm
Title

Working Temperature

-10~40℃
Title

working environment humidity

≤80%
Title

electrical & dimensions

Power Supply Voltage

Single Phase 220V±10%, 50/60Hz AC Power
Title

Cooling system

water cooling
Title

laser cleaning gun weight

<1.5kg
Title

Weight

167kg
Title

Dimensions (L×W×H)

1080mm*450mm*800mm
Title

contact us for laser cleaning equipment

Our sales manager will serve you as soon as possible.
Thanks for contacting us. We'll get back to you as soon as possible.

NAME

TEL

EMAIL

Country

MESSAGE

our featured machine

frequently asked questions

What type of laser cleaners is this wall climbing robot compatible with?

This magnetic wall climbing robot is designed for pulsed laser cleaning machines, supporting both 500W and 1000W systems. It can work with handheld pulsed laser cleaners by mounting the laser head onto the robotic platform.

Can the robot operate on vertical or 90° steel surfaces?

Yes. The robot uses permanent magnetic adhesion, allowing stable operation on vertical and 90° steel surfaces. It is suitable for walls, tanks, steel structures, and other ferromagnetic surfaces.

Is the system suitable for curved or cylindrical surfaces?

The crawler structure allows the robot to operate on curved steel surfaces, such as pipes or tanks, provided the surface diameter meets the minimum curvature requirements.

What materials and contaminants can be cleaned?

The system is suitable for removing rust, paint, oxides, welding slag, oil, coatings, and surface residues from steel and other magnetic metal surfaces using pulsed laser cleaning technology.

Will laser cleaning damage the metal surface?

No. Pulsed laser cleaning is a non-contact process. When properly configured, it removes only the contamination layer while preserving the base metal without abrasion or thermal damage.

Can the laser cleaner be used manually without the robot?

Yes. The pulsed laser cleaning machine can be used in handheld mode when the robot is not required, allowing flexible switching between manual and robotic operation depending on site conditions.

What are the typical applications for this system?

Typical applications include steel structure maintenance, tank cleaning, shipbuilding, industrial plant refurbishment, pipeline surface preparation, and other vertical or high-altitude laser cleaning tasks.
