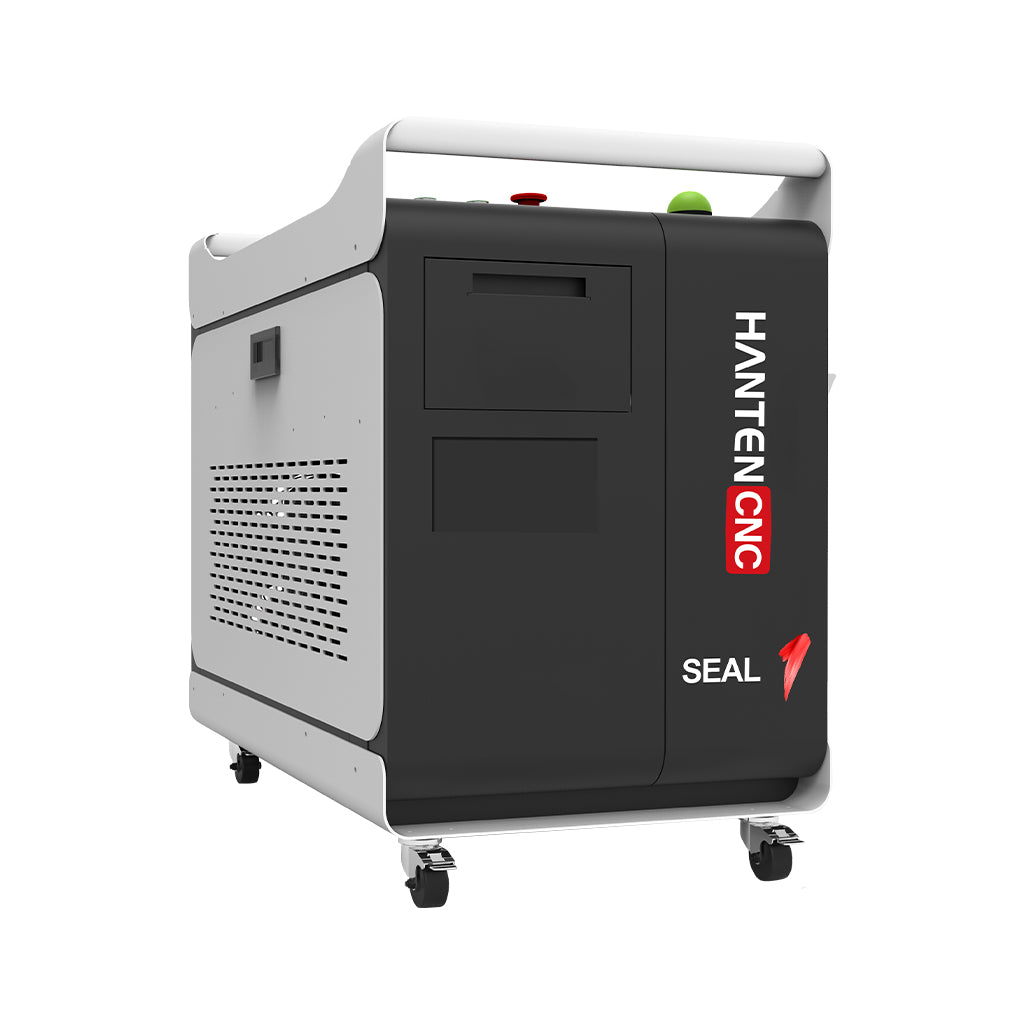

SEAL1 500W pulse laser cleaning machine front view for fast industrial rust removal
Side view of SEAL1 pulse laser cleaner showing ventilation panel and compact chassis

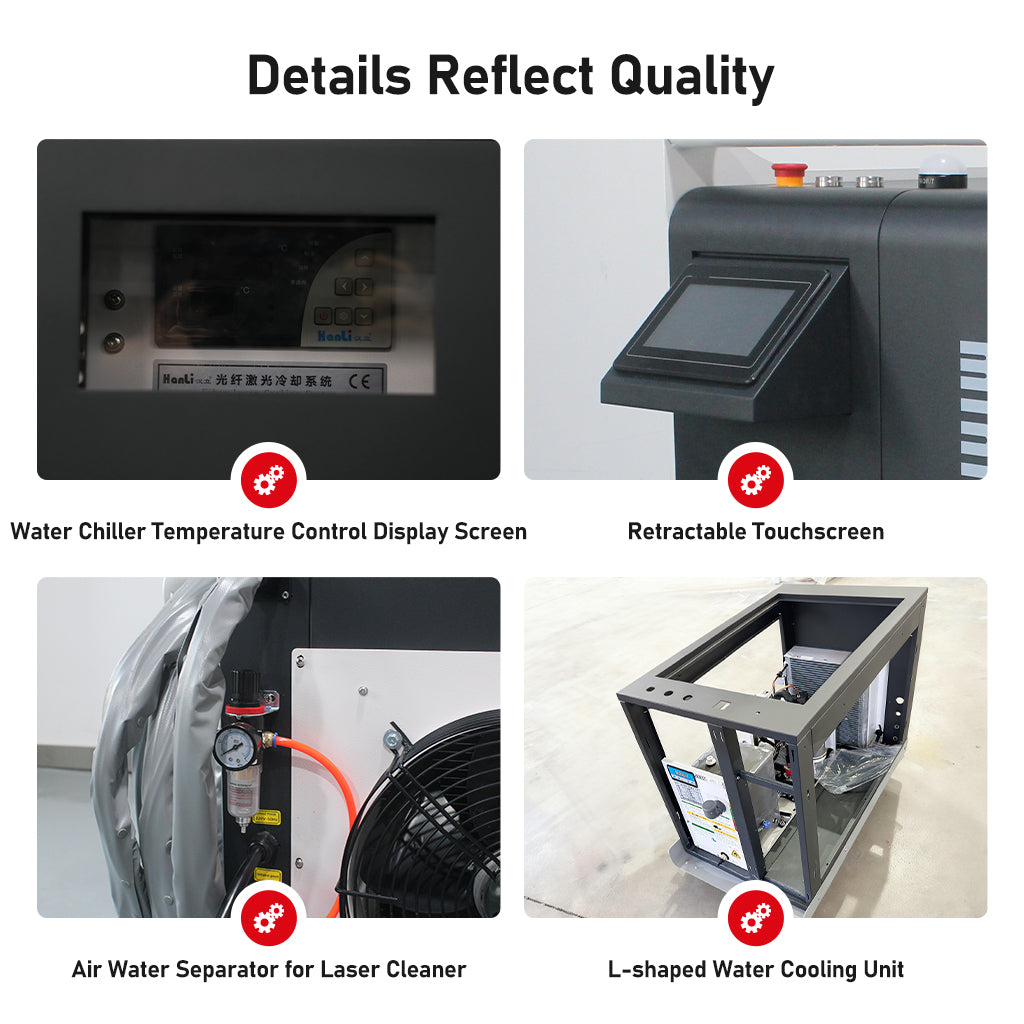

Detail views of SEAL1 laser cleaner including water chiller display touchscreen air water separator and cooling unit

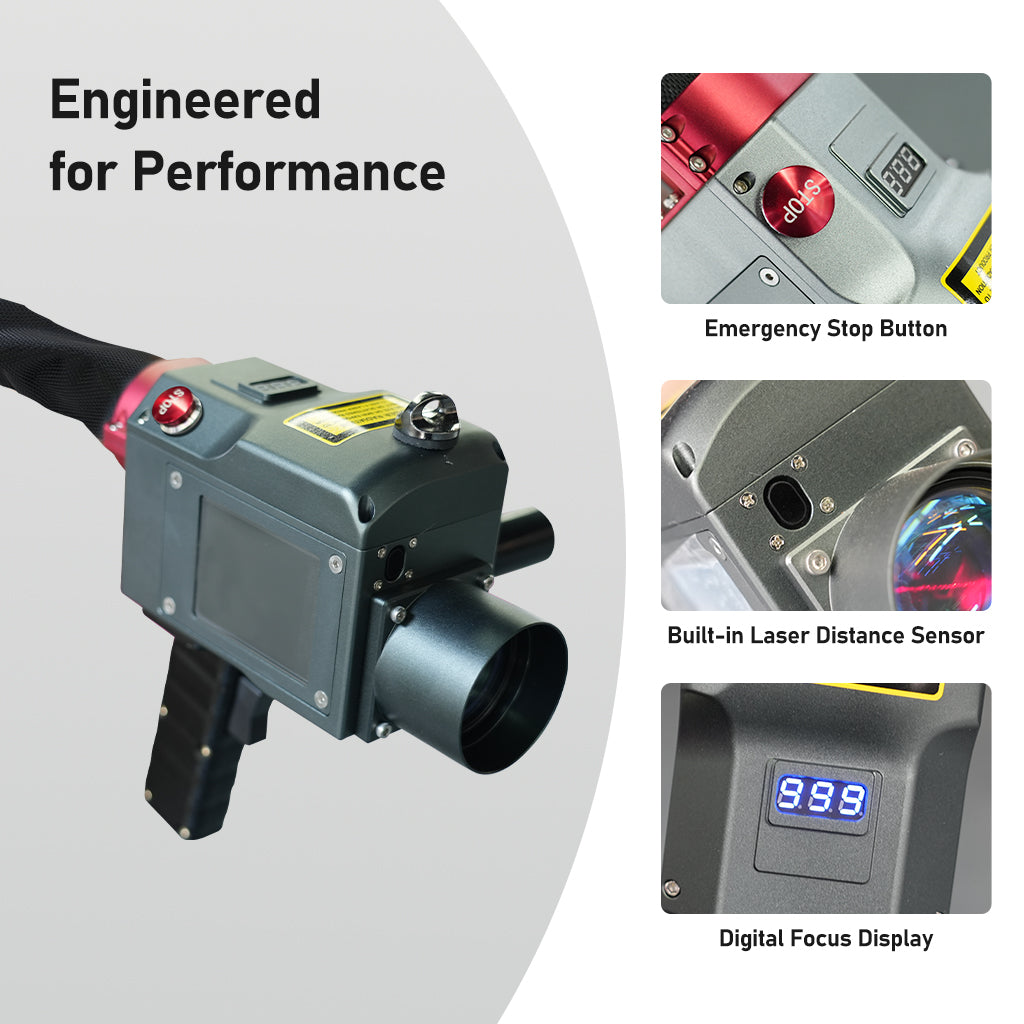

Handheld laser cleaning head of SEAL1 machine with optical fiber protection distance sensor and digital focus display
Before and after cleaning results on wood tools and metal parts using SEAL1 pulse laser cleaner

regarding shipping

We will choose air freight for all goods, which will be delivered to the order address in 7-15 days. The product cost is DDP. After you place an order, you just need to wait patiently for receipt, and leave the rest to us.

regarding the transaction

There's no need to worry about large online transactions; all our transaction processes are monitored by the Shopify platform, and our customers' interests are always our top priority.

after-sales service and support

We have dedicated after-sales support personnel to help you master the operation of the equipment. After-sales service is available 24 hours a day to ensure that every customer's concerns can be addressed.

packaging of goods

Each unit is securely packed in a 1100*650*950mm wooden case reinforced with steel tubes for maximum protection during transport. The outer carton measures 1160*720*1150mm, ensuring safe delivery. Net weight: 131kg; Gross weight: 181kg. Ideal for international shipping and industrial handling.

Buy SEAL1™ 500W Pulse Laser Rust Cleaning Machine | Direct From Manufacturer

HANTENCNC SEAL1™ 500W Pulse Laser Cleaning Machine — a high-power industrial laser rust remover for fast, precise surface cleaning.
Removes rust, paint, and oxide layers 2–3× faster than 200W models without damaging the base.
With an efficient water-cooling system, it ensures stable performance and continuous operation, ideal for metal restoration, factory maintenance, and industrial laser cleaning.
$24,999.00
POWER
Quantity

500W and 1000W pulse laser options

Water-cooled pulse laser cleaning system

For rust, oil, graffiti and surface residue removal

Controlled non-contact cleaning on multiple surfaces

Manufacturer-direct industrial laser cleaning machine

Why Choose the SEAL1 Water-Cooled Pulse Laser Cleaner

The SEAL1 pulse laser cleaning machine is designed for users who need controlled, repeatable cleaning results across metal parts and selected non-metal surfaces. With stable water cooling, multiple scanning modes and a portable laser gun, it offers more flexibility for routine maintenance, mold care, restoration work and surface preparation.



Compared with aggressive blasting or chemical treatment, pulse laser cleaning provides a more targeted process for removing rust, paint, oxide, oil and surface buildup while helping preserve the base material. This makes the SEAL1 a practical choice for workshops, service teams and industrial users who need cleaner surfaces with less secondary damage.

Alt image

multi-material seal™ pulse laser cleaning machine for industrial use

Pulse Laser Rust Removal for Metal Parts

The SEAL1 is designed for controlled rust and oxide removal on metal parts that need cleaner surfaces before coating, welding, assembly or inspection. Its pulse laser process helps remove corrosion and contamination without relying on abrasive media, making it suitable for industrial repair, maintenance and restoration work.



This application is especially useful for users who need better control on detailed parts, edges and localized cleaning zones where over-processing should be avoided.

laser graffiti removal on stone

The SEAL1 can also be used for graffiti and surface stain removal on concrete, brick and masonry in selected restoration projects. It helps reduce unwanted paint, marker residue and surface contamination without heavy scraping or harsh chemical stripping.



This makes it useful for facade maintenance, public-space restoration and architectural cleaning work where preserving the original texture of the substrate is important. Trial testing is recommended before full-scale application on porous surfaces.

wood surface cleaning for refinishing work

On selected wood surfaces, the SEAL1 can be applied to remove old paint, resin, smoke stains and aged surface buildup in a more controlled manner. This allows operators to reveal a cleaner surface while preserving more of the natural grain structure compared with heavy sanding.



Typical uses include furniture refinishing, decorative wood restoration and surface renewal work where detail retention matters. Because wood varies by finish and density, sample testing is recommended before larger cleaning jobs.

Get Quote

before and after results of pulse laser cleaning

The gallery below shows how pulse laser cleaning can improve surface condition across different shapes and contamination types. Typical examples include rusted metal parts, oxidized components and restoration-related cleaning results.

500w vs 1000w pulse rust removal comparison

500W SEAL1™ Pulse Rust Removal Effect

1000W SEAL1™ Pulse Rust Removal Effect

Key Features Of The SEAL1 Pulse Laser Cleaning System

  • Product Infomation
Title

  • core specifications

  • performance & operation

  • electrical & dimensions

  • gas requirements

  • what's in the box?

core specifications

Product Model

SEAL1™ 500W
Title

laser Souce

JPT
Title

Average laser Power

500W
Title

Output Mode

Pulse
Title

Fiber Cable Length

5 meters (for 1.5 mJ model) / 10 meters (for 5mJ & 15 mJ models
Title

performance & operation

Pulse Repetition Rate Range

1-4000KHZ
Title

Pulse Width

30-500ns
Title

Central Wavelength

1064nm
Title

Working Temperature

-10~40℃
Title

Output Power Tuning Range

0-100%
Title

electrical & dimensions

Power Supply Voltage

110-220VAC  50/60HZ
Title

Power Consumption

1600W
Title

Cooling System

Air-Cooled
Title

Weight

181KG
Title

Dimensions (L×W×H)

1160*720*1150mm
Title

gas requirements

Recommended Gases

Oil-free and water-free compressed air or inert gases such as argon and nitrogen
Title

Gas Purity

No requirements
Title

Gas consumption

〈   24-28
Title

Operating Gas Pressure

0.4-0.8MPA/0.5-0.8MPA
Title

field lens selection

F254
Title

  • Ultimate Pack1

tell us what you need to clean

Share your material type, contamination type, workpiece size and expected result. Our team can help you decide whether the 500W or 1000W SEAL1 model is the better match for your application.
Thanks for contacting us. We'll get back to you as soon as possible.

NAME

TEL/WhatsApp

EMAIL

Country

MESSAGE

SEAL1™ Comparison of Different Cleaning Powers

Power

500W

1000W

impact on base material

under normal parameters, it basically does not damage the substrate.

under normal parameters, it basically does not damage the substrate.

reference price

24999usd

34999USD

cleaning thickness

Rust ≤50μm

Rust ≤50μm

cleaning speed

8-12㎡/h

15-20㎡/h

manual maintenance and service life

low manual maintenance cost; overall machine lifespan under normal maintenance conditions: 8-10 years.

low manual maintenance cost; overall machine lifespan under normal maintenance conditions: 8-10 years.

recommended operating conditions

dust protection is required; temperature control (-10-40°c); humidity control (10%-80%); and stable voltage.

dust protection is required; temperature control (-10-40°c); humidity control (10%-80%); and stable voltage.

cleaning efficiency

high

it's  twice as fast as 500w.

How To Use The SEAL1 Pulse Laser Cleaner

Frequently Asked Questions About The SEAL1 Laser Cleaning Machine

What can the SEAL1™ 500W pulse laser cleaning machine remove?

The SEAL1™ 500W model is engineered to eliminate stubborn surface contaminants such as deep rust, industrial coatings, heavy paint layers, carbon buildup, oxidation, welding residues, mold growth, resin buildup, and burnt oil films. Its high-energy pulse output makes it ideal for demanding industrial cleaning tasks on metals, stone, concrete, and various engineered materials.

How portable is the 500W unit?

Despite its industrial power, the SEAL1™ features:

A compact footprint

Reinforced wheels

An ergonomic retractable handle

This makes it easy to move across production floors or outdoor work sites.

What makes the SEAL1™ different from lower-power cleaning machines?

Unique advantages include:

Higher pulse energy for thick layers

Faster processing speed

Greater penetration for oxide removal

Superior performance on rough industrial surfaces

Stable output for long shifts

Improved cleaning width

It is built for heavy-duty professional use.

Does the laser produce fumes during cleaning?

Yes, vaporized contaminants generate smoke and dust. The machine can be paired with an optional fume extractor to maintain air quality and comply with industrial safety standards.

Can the SEAL1™ replace sandblasting or chemical cleaning?

Yes. In many industrial applications, it provides a cleaner, safer, and faster alternative. It eliminates:

Abrasive wear

Chemical pollution

Waste disposal problems

Secondary cleanup labor

It also allows on-site cleaning without dismantling equipment.

Do operators need special training?

Basic laser safety training is recommended, but the machine is designed with:

A user-friendly touchscreen

Adjustable cleaning modes

Automatic pulse control

Integrated safety protection

Most users can master it in under one hour.

What power supply is required for this machine?

10. What power supply is required for this machine?

The SEAL1™ 500W model operates on a standard industrial AC power connection (typically 220V–380V depending on region). It does not require specialized power distribution.
